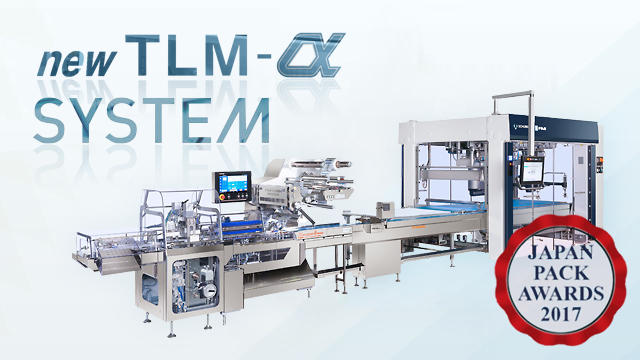

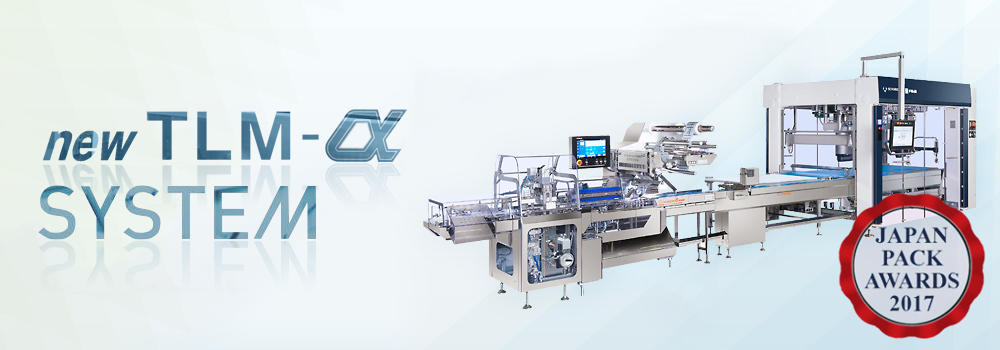

new TLM-α system

SCHUBERT (Germany)
Partnership Project
Multi-row Automatic Pick and Place
Robot System

new TLM-α systemnew TLM-α system

Features

A multi-row automatic pick and place robot system developed in a partnership project with SCHUBERT (Germany).
Three F4 robots with arms of different lengths work in one frame, enabling a much wider range of operation and saving more space compared to delta robots.
It also has many effects, including reducing product damage, shortening cleaning and maintenance time, cutting down on alignment and direction correction, improving combined functionality, and lessening packaging defects.

Specifications

Machine ModelCapacityOperating Environment
new TLM 10 - 210 per min
(depends on the product condition, when single picking)
Ambient temperature: 5 - 40 ℃
Humidity: 30 - 95% RH
FS transfer Highest speed: 60 m per min Ambient temperature: 0 - 40 ℃
Humidity: 30 - 85% RH
α wrapper 8
(FW3400/B)
10 - 250 packages per min. Ambient temperature: 0 - 40 ℃
Humidity: 30 - 85% RH

Product Application

  • Agricultural Products
  • Bread
  • Iced Foods
  • Industrial Products
  • Noodles
  • Ready Meals
  • Stationery
  • Sweets

Sweet bread, snack bread, bread rolls, steamed buns, dorayaki, monaka, yokan, cookies, rusks, baumkuchen, flan, cream puffs, ice cream, frozen noodles, frozen foods, sausages, instant noodles, cup noodles, spaghetti, mochi, ochazuke, cup miso, ink cartridges, printer paper, notebooks, pens, outlets, switches, duct hoses, bulbs, bearings

Options

  • ■Gazette Device
  • ■Auto Splicer (Film Auto Connection Device)
  • ■Preheater
  • ■Date Device
  • ■Other
